NWNGR ‘Ashbury Summer Car’

Produced in collaboration with William Curry, this laser cut kit represents the Ashbury ‘Summer Cars’ as they were originally built for the NWNGR in 1894. A total of four were built and numbered 11 to 14 in the the NWNGR system.  Carriages 11 and 12 were ‘semi-glazed’ with glazing in the intermediate windows, whilst Carriages 13 and 14 were completely open, with just two horizontal bars across the intermediate apertures.

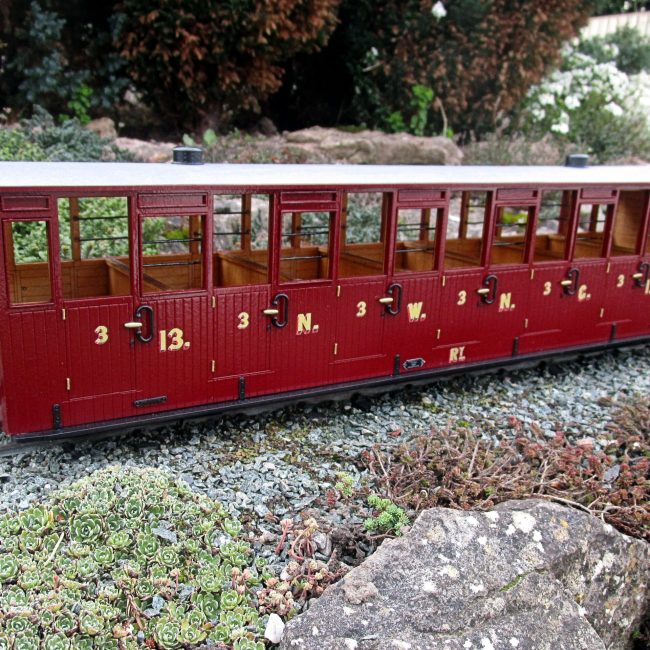

This latest kit can be supplied to represent either version, with the ‘open’ version being illustrated here. If you would like an indication of how the semi-glazed version would look, please see the page for the ‘Cut-Down Ashbury Summer Car Kit’, the glazing for which is identical.

The kit is designed with well proven hidden slot and tab construction techniques throughout for easy and accurate assembly and will be available in MDF or Plywood. It includes individually glazed panels with window beading in full relief. Interior panel detail and bench seating is supplied in full.

As of April 2025 these kits are available for 32mm using the prototypical pattern bogies, or 45mm gauge using the ’45mm Gauge Optimised Bogies’, with either allowing operation down to a 2ft 6in radius, but cutting a substantial chord in the process. Insulated wheels are also available if required. Please specify when ordering.

As standard the kit will include, 3D printed representations of the Door Handles and Grab handles along with SLR Models ‘Door Lock Covers’, all of which are manufactured here in the UK. Despite their fine appearance these are surprisingly strong components, especially once mounted in position and will easily stand respectful handling.

Couplings and decals are not supplied with the kit, but the correct NWNGR decals are available from Endon Valley Custom Decals.

Specification

– 16mm Scale Laser Cut MDF or Plywood Kit

– ‘Semi-Glazed’ and ‘Fully Open’ versions available, please specify at time of ordering.

– Proven, hidden slot and tab construction to aid accurate assembly

– Full interior panel detailing and seating framework supplied

– Individual glazing panels (where appropriate), complete exterior window beading modelled in full relief

– 3D printed Door Handles, Door Stops, Door Lock Covers and Grab Rails

– Includes prototypical outline ‘Bogies’, complete with steel wheelsets in 32mm gauge or ’45mm gauge optimised bogies’ for 45mm gauge.

– Does not include couplings, vacuum pipes or lettering.

Dimensions

Length Over Headstocks: 479mm

Roof Height: 127mm

Max Height: 136mm (Over Vent)

Width Over Body: 96mm

Extreme Width: 109mm (Over Footboard)

Availability

At present it is planned the first of these kits will be available for dispatch in late May 2023 or at 28 days notice therafter.

Prices

NWNGR ‘Original Summer Car’ (Either Version)

MDF: £135.00 + Postage

Plywood: £145.00 + Postage

If you would like to place an order, please see our ‘Ordering Page’
