RNAD Bogie Flat Wagons

These bogie flat wagons were built for use at RNAD sites, transporting various munitions from the Standard Gauge Interchange to the various workshops and magazines. Many survived into preservation at various locations and whilst some remain in original condition, some have donated their underframes, to be rebuilt with other body work. In RNAD service some of these vehicles featured removable end bulkheads, whilst others had a more substantial fixed bulkhead. As such, four versions of this kit are available to represent them in various conditions although not all are illustrated here (Please specify at time of ordering).

– Removable Type Bulkheads Fitted (Illustrated in Yellow and Black Livery)

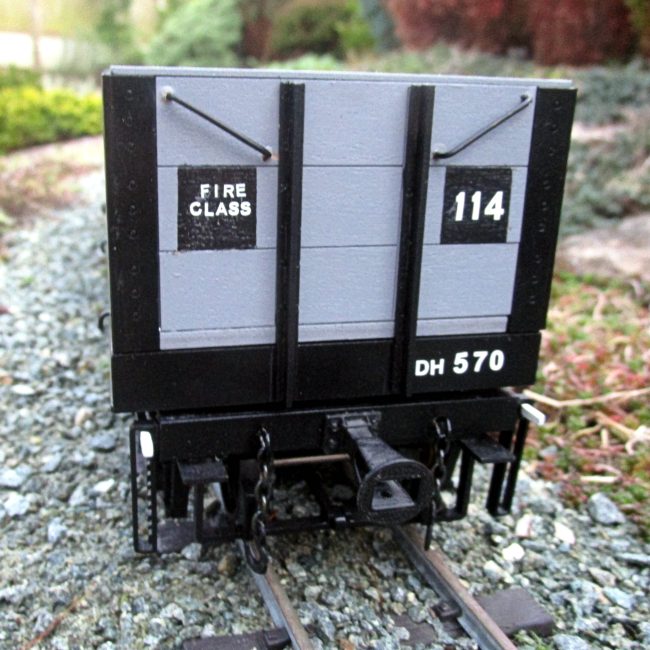

– Fixed Bulkheads (Illustrated in Grey and Black Livery)

– No Bulkheads Fitted (Not Illustrated)

– As preserved at the Great Whipsnade Railway with Modified Bulkheads (Not Illustrated)

Whilst these vehicles would make natural companions to the other RNAD vehicles in our range, they are actually quite substantially sized at 395mm over the headstocks. However, much like their full-size counterparts, they are more than capable of traversing small radius curves, and will easily negotiate a 2ft 6in radius.  As such, these vehicles ought to look at home on just about any garden railway.

Specification

– Laser cut 16mm scale kit in MDF or Plywood

-Proven ‘Hidden Slot and Tab’ construction for easy, accurate construction.

– Highly detailed, with copious engraved rivet detail and full strapping.

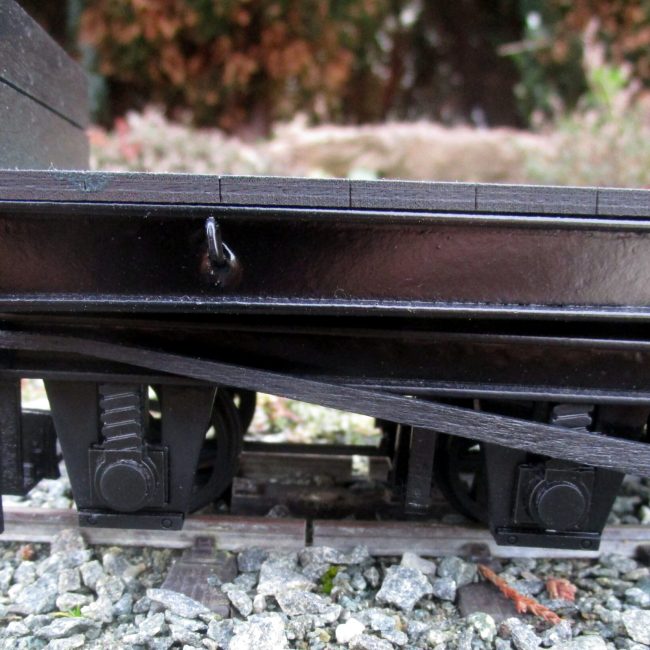

-Complete with Binnie Engineering Wheels and Axles as well as HGLW Oil Filled Bronze Bearings and correct pattern SLR Models 3D Printed ‘Bell-Mouth’ Couplings

– Can be built to 32 or 45mm gauge as standard

– Four distinct versions available (Please see description above).

Dimensions

L: 395 mm (Over Headstock)

W: 83 mm (Maximum Width Over Body)

H: 50mm (Wagon Bed) 74mm (Removable Bulkhead) 94mm (Fixed Bulkhead)

Markings

These vehicles carried their markings in several different styles and as such lettering is not provided in the kit. However, ‘Endon Valley Decals’ produce an appropriate decal pack which can be purchased directly from them

Price (All versions)

MDF: £55.00 each + Postage

Plywood: £60.00 each + Postage

If you would like to place an order, please see the information on our ‘Ordering Page’.
