SAR ‘Type 1’ ‘B-Wagon’

SAR ‘Type 1’ ‘B-Wagon’

Note: This kit was significantly updated in April 2024. For customers with the original version of the kit some of these upgrade parts are available to order; please see the bottom of the page.

It was slightly updated again for April 2025 to include the ‘2025 SARCAST Bogie’ Kit and ‘Solid 3D Printed Vacuum Pipe’. The 2025 upgraded bogies frames and vacuum pipes are also available to purchase. Please enquire directly.

The original style kits can also still be produced for those wishing to maintain a standardised appearance with their existing stock: please contact me for further details

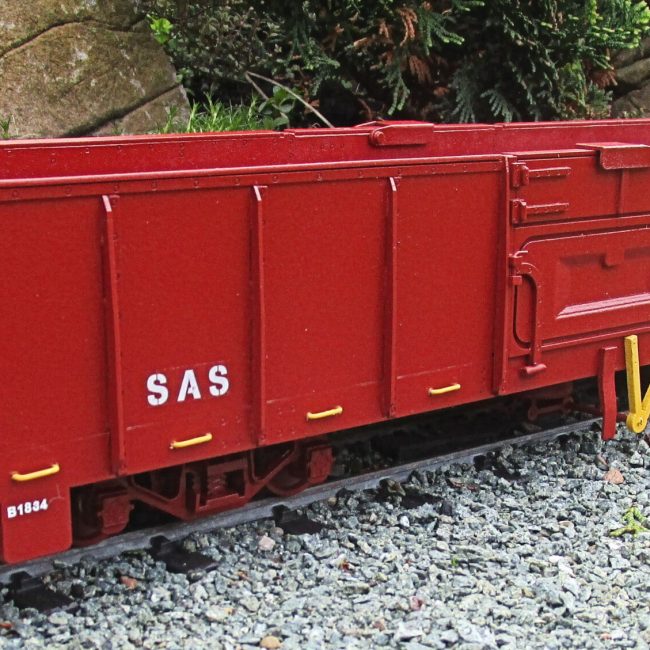

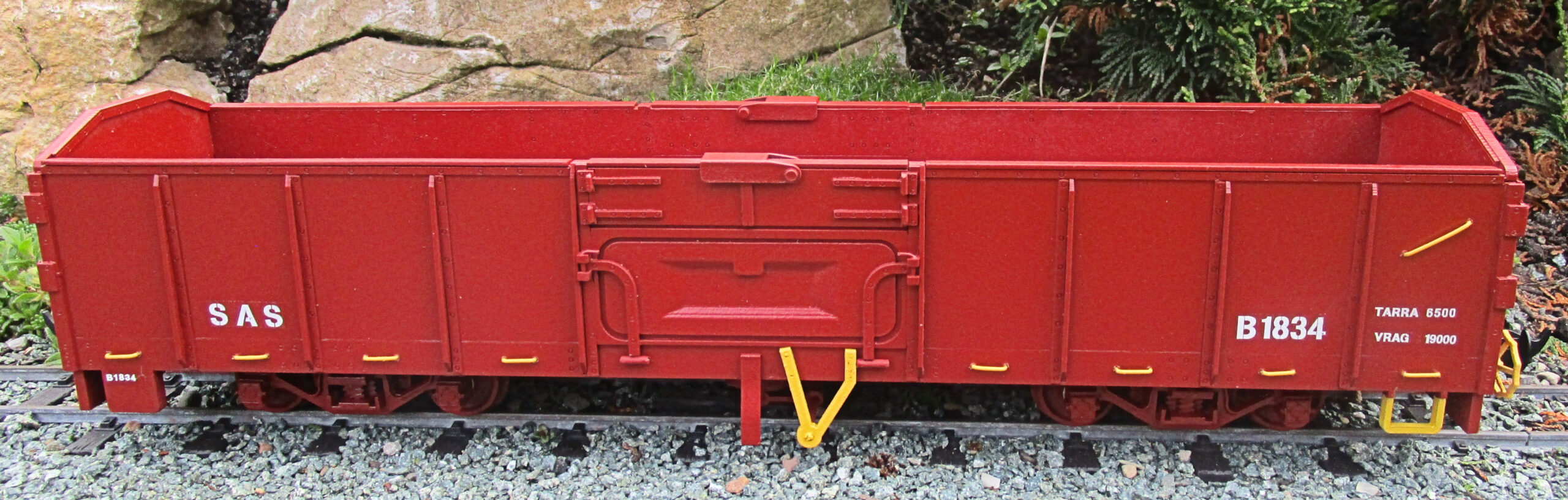

The earliest variant of the ubiquitous ‘B-wagon’, which features a range of detail differences compared to the later ‘Type 2’; in particular the ‘Type 1’ features a much greater degree of riveted construction, with different end and door details. These vehicles were seen in use over many of the SAR 2ft gauge lines, sometimes in block trains of up to 12 vehicles or more; but also mixed in with other workings.

A number of these wagons have found their way into preservation in the UK; in particular on the Ffestiniog and Welsh Highland Railways, where they are in departmental use. A pair were also converted for use as ‘bike wagons’, although they are no longer used as such, with cycles now being accommodated in the brake carriages. Should there be demand, I will produce the ‘bike wagon’ variant; please enquire if interested.

Specification

– 16mm Scale Laser Cut Kit available in MDF or Plywood

– Proven, hidden slot and tabs construction for easy and accurate assembly

– Dummy Brake Detail, now including 3D printed vacuum cylinder and reservoir as standard

– Improved strapping detail in full relief

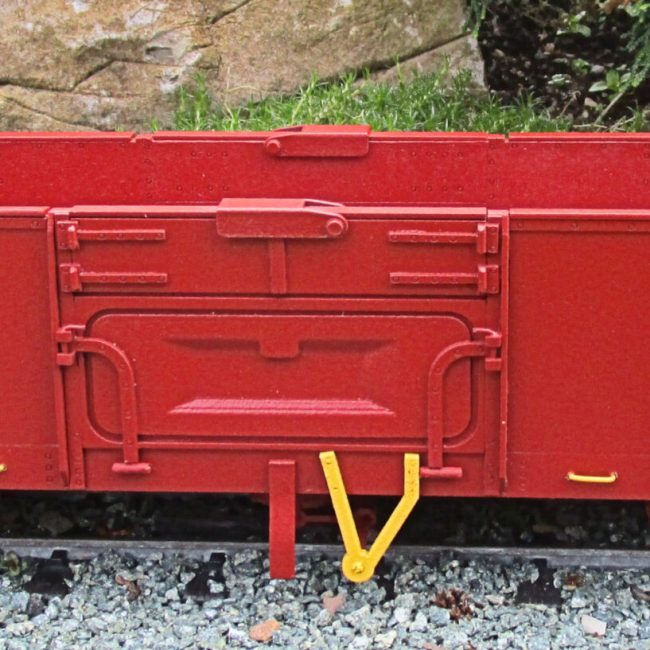

-Now includes 3D printed representation of the pressed steel doors

-3D printed representation of the top door locks, brake hand wheels, ‘solid’ vacuum pipes and door drop guards

.- Copper wire is supplied to make the various handrails,  handles, pins and hinges.

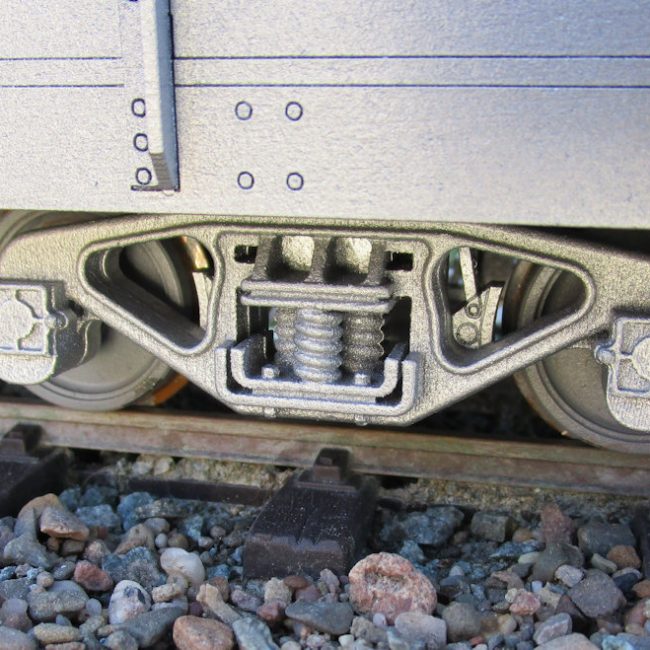

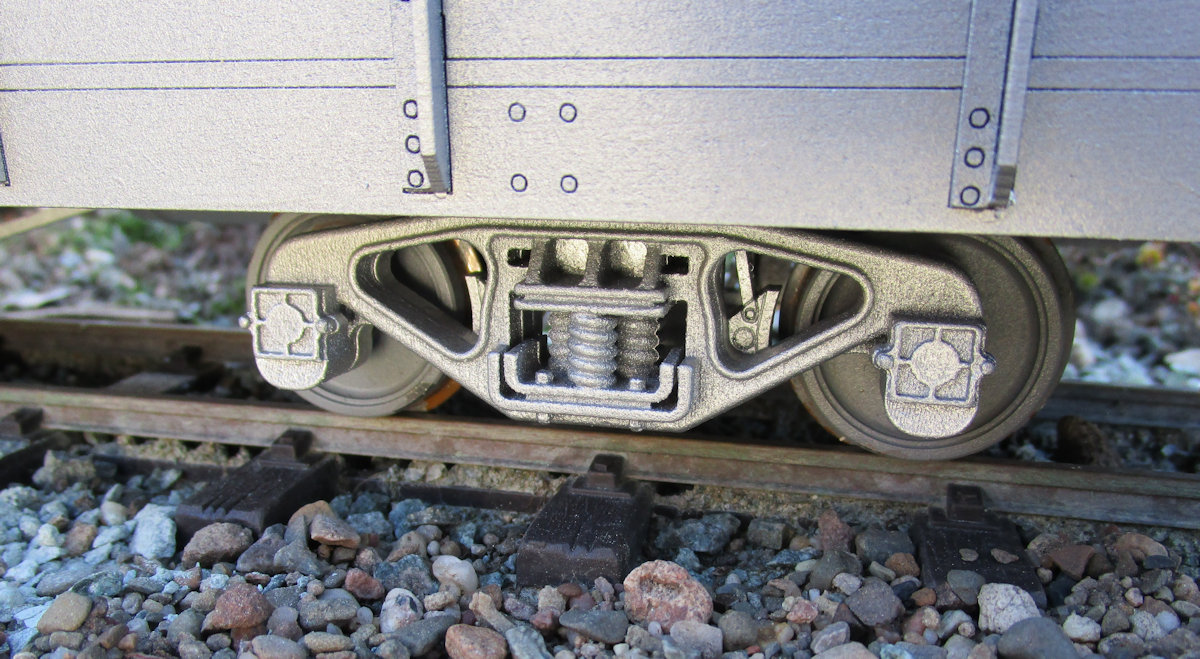

– Now Includes 2025 updated ‘SARCAST Bogies’, complete with steel wheelsets in either 32 or 45mm

– Does not include couplings, or lettering

Dimensions:

Length: 400mm (Over Headstock)

Height: 100mm

Width: 96mm (Over Hinge Detail)

Markings

Most of the vehicles represented in the range were built in significant quantities. As such no lettering or numbering is provided as it would be impractical to include so many numbering options. However, ‘Endon Valley Decals’ produce appropriate decals and these can be customised to suit your requirements.

*I am not responsible for the content of 3rd Party Websites.

Price:

Multi-purchase prices are available for this kit and are detailed below.

MDF:

1-2:  £85.00 each Plus P&P

3-5:  £80.00 each Plus P&P

6+:    £75.00 each Plus P&P

Plywood

1-2:  £95.00 each Plus P&P

3-5:  £90.00 each Plus P&P

6+ :   £85.00 each Plus P&P

If you would like to place an order, please see the information on our ‘Ordering Page’

Detail Upgrade Kit for the original Type 1 B-Wagon Kit

The following kit of parts is available to order on our usual 28-day lead time and can be easily fitted to the original kit to replace the originally supplied items. Regrettably it is not possible to retro-fit the new representation of the pressed steel doors to the original kit.

-2024 updated SARCAST Bogie Frames (Pair) in Plywood or MDF as well as 8 off 2mm Journal Bearings. Wheels are not supplied; it is envisaged you would use with wheelsets originally supplied.

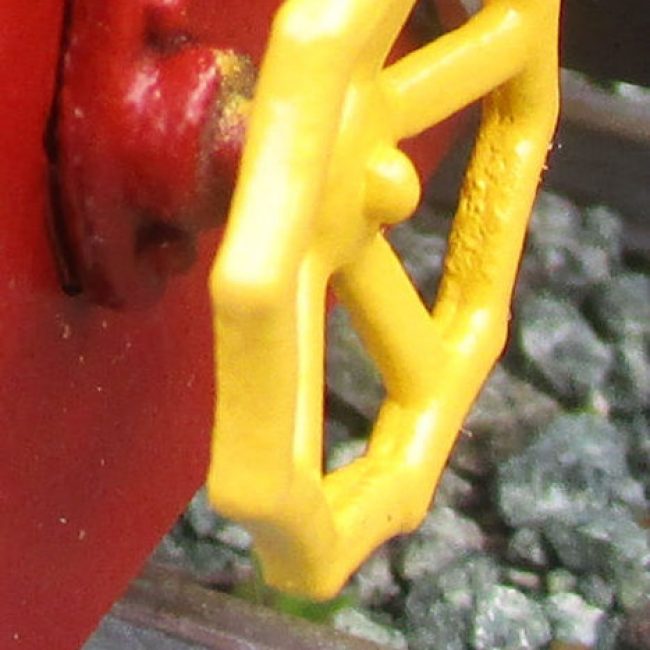

-3D printed handbrake wheels (pair)

-3D printed top door locks (Pair)

-3D Printed Door Drop Guards (Pair)

Price

MDF £30.00 each Plus P&P

Plywood: £35.00 each Plus P&P
